​The 76 mm Gun Motor Carriage M18 – Hellcat, United States Tank Destroyer

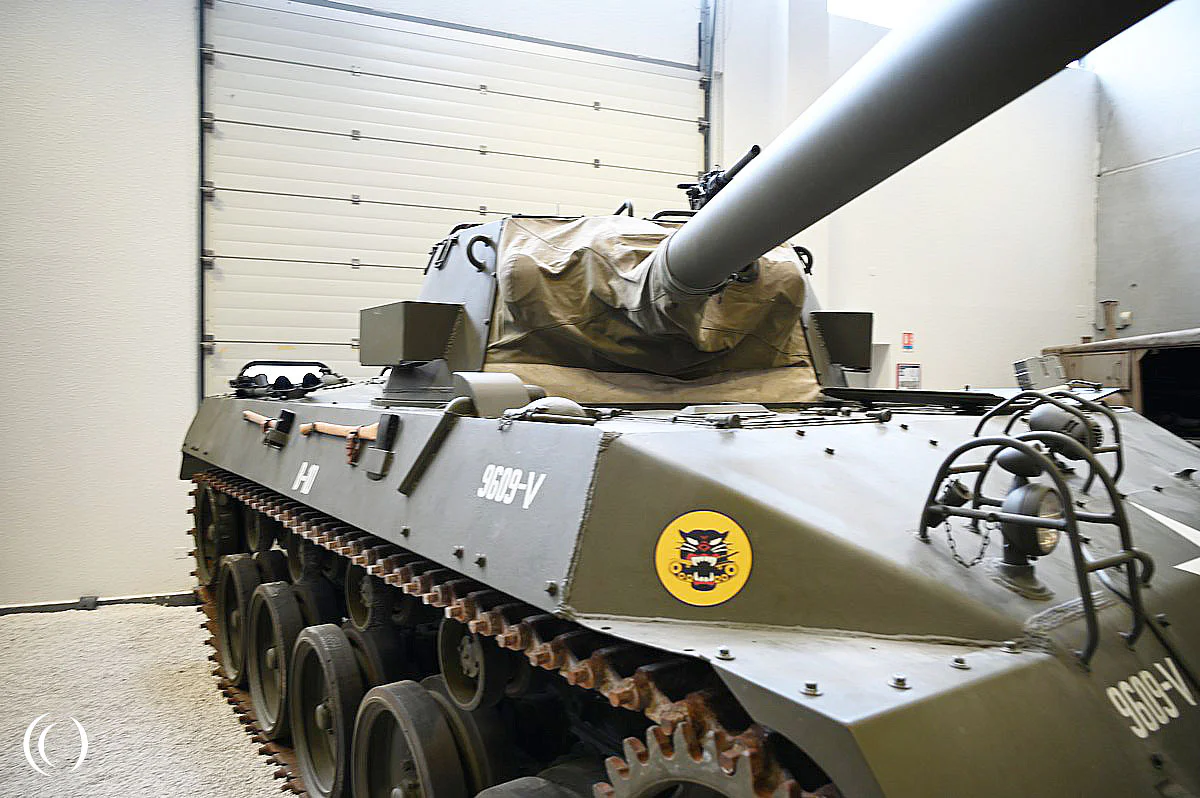

76 mm Gun Motor Carriage M18 – Hellcat photo 2024

​The 76 mm Gun Motor Carriage M18, commonly known as the M18 Hellcat, was an American tank destroyer developed during World War II. Its primary role was to provide highly mobile, heavily armed anti-tank capability to U.S. forces, leveraging speed and firepower to counter enemy armor effectively.

Development and Design

The development of the M18 began in 1942 at the U.S. Army’s Ordnance Department. The aim was to produce a fast, agile tank destroyer equipped with a powerful 76 mm gun. The design focused on achieving high speeds and maneuverability, departing from the more heavily armored but slower tank destroyers in use at the time. To accomplish this, the M18 was built with a lightweight, open-topped turret and thin armor, sacrificing protection for speed.

The M18 was powered by a Continental R-975 radial engine, providing 400 horsepower. This engine, combined with a torsion bar suspension system and a well-designed power-to-weight ratio, allowed the Hellcat to reach speeds up to 55 mph (88 km/h), making it the fastest tracked armored vehicle of World War II. The high speed of the M18 enabled it to perform hit-and-run tactics, quickly engaging enemy tanks and then withdrawing before retaliation.

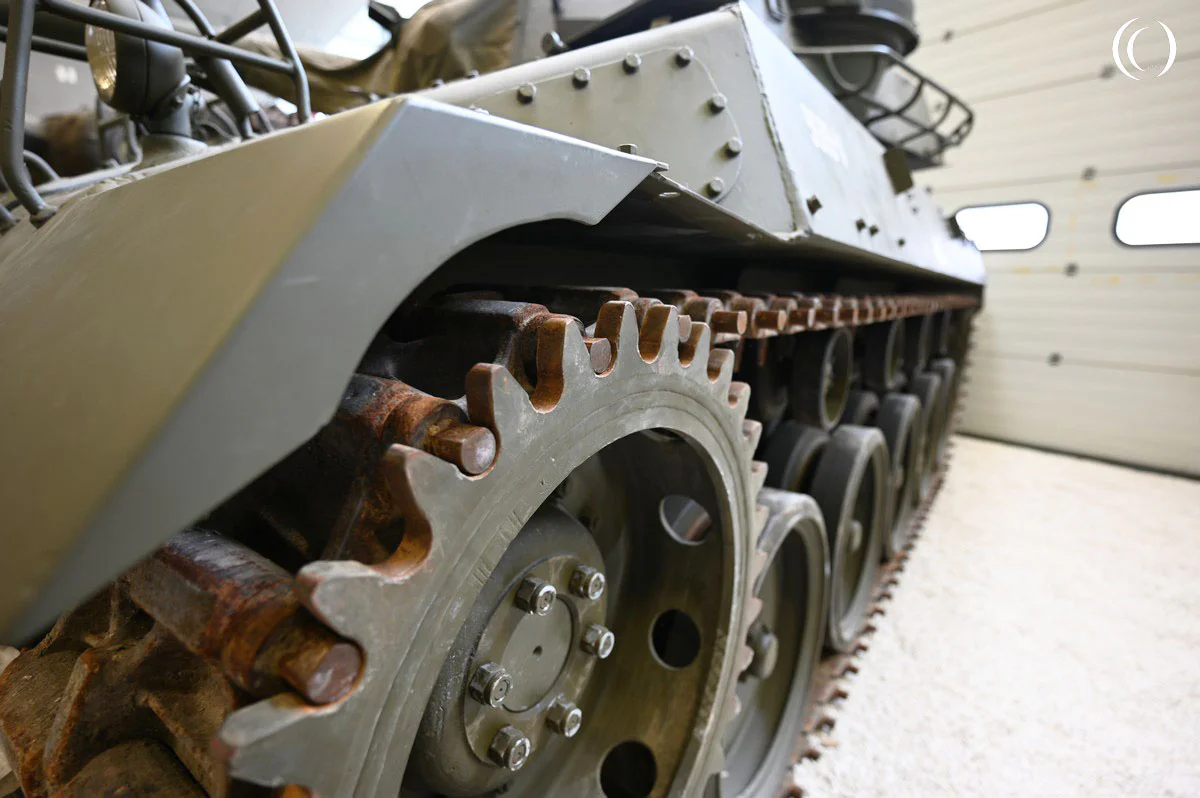

76 mm Gun Motor Carriage M18 – Hellcat photo 2024
76 mm Gun Motor Carriage M18 or M18 GMC – Hellcat – photo 2024
76 mm Gun Motor Carriage M18 – Hellcat photo 2024

Armament

The primary armament of the M18 was the 76 mm Gun M1A1, M1A1C, or M1A2. This gun had better armor penetration capabilities than the 75 mm guns mounted on earlier American tanks and tank destroyers. It was capable of penetrating up to 109 mm of armor at 1,000 yards with APC (Armor-Piercing Capped) rounds. The Hellcat carried 45 rounds of 76 mm ammunition, allowing it to sustain engagements with enemy armor.

For secondary armament, the M18 was equipped with a .50 caliber M2 Browning machine gun mounted on a ring mount above the turret for anti-aircraft and anti-infantry purposes. Some M18s were also fitted with .30 caliber M1919 machine guns, providing additional defensive firepower.

M18 Hellcat – photo 2024
M18 GMC – photo 2024
76 mm Gun Motor Carriage M18 Driver Seat – photo 2024
76 mm Gun Motor Carriage M18 – photo 2024
76 mm Gun Motor Carriage M18 – Hellcat photo 2024

Operational History

The M18 Hellcat first saw combat in 1944 during the Italian Campaign. Its performance there highlighted both its strengths and limitations. The speed and maneuverability of the Hellcat were praised, allowing U.S. forces to outflank and outmaneuver German tanks. However, its thin armor meant that it was vulnerable to return fire from even lighter enemy weapons.

The Hellcat played a significant role in the European Theater, particularly during the Battle of the Bulge and subsequent Allied offensives into Germany. Its ability to rapidly respond to enemy armored threats and support infantry with direct fire proved invaluable. Despite its vulnerabilities, the Hellcat’s effectiveness in its intended role as a tank destroyer was evident through its high kill-to-loss ratio.

76 mm Gun Motor Carriage M18 or M18 GMC – Hellcat – photo 2024
76 mm Gun Motor Carriage M18 – photo 2024
M18 Hellcat – photo 2024

Post World War II Use

After World War II, the M18 Hellcat saw limited use in subsequent conflicts. Some were used by U.S. allies and remained in service with various nations for several decades. Its design influenced later developments in tank destroyers and armored fighting vehicles, emphasizing the importance of mobility and firepower.

M18 Hellcat – photo 2024

Legacy

The M18 Hellcat is remembered as one of the most effective tank destroyers of World War II. Although a great achievement it was measured in the late days of the war where supreme air superiority and field superiority were all allied. It had a different ordeal than the M4 Sherman throughout the war from north Africa to Russia, Italy, Southern France and Normandy. The Hellcats design philosophy of prioritizing speed and firepower over armor protection represented a significant shift in armored warfare tactics but was not completely on its own. The British developed the Cromwell tank with a 75 mm gun, speeds up to 64 km/h and 64 mm armor on the hull and 76,7 mm on the turret. Compared to the Hellcat’s 76mm gun, 12,7 mm armor in the hull and 25,4 mm on its turret and an awesome 89 km/h on road and 42 km/h off road it was a mutual idea. waar de hellcat nog meer op snelheid en hard to get doelde. ​The 76 mm Gun Motor Carriage M18 success demonstrated the value of mobility in armored combat, influencing future military vehicle designs and tactics.
